USB3.0 Hub

USB 2.0 High-Speed Hub is a professional development hub with integrated programming tools and peripherals. It combines a 7-port USB 2.0 hub with ST-Link programmer, dual UART bridges, and SD card reader into a single compact device for embedded development workflows.

🚀 Features

Main Hub Architecture

Primary Hub: FE2.1 USB 2.0 Hub IC (7 downstream ports)
Secondary Hub: FE1.1S USB 2.0 Hub IC (4 downstream ports, cascaded)
Total Ports: 11 USB endpoints (6 external + 4 internal peripherals + 1 upstream)
External Connectors:
3× USB-C downstream ports (Ports 5, 6, 7)
3× USB-A downstream ports (Ports 2, 3, 4)
1× USB-C upstream port (host connection)
1× USB-C power input (5V 3A)

Integrated Development Tools

ST-Link V2 Programmer: STM32F103C8T6-based in-circuit debugger
SWD interface (SWCLK, SWDIO, SWO)
Compatible with STM32, STM8 targets
Onboard programming via 5-pin header
Status LED indicator
Dual UART Bridges: 2× CH343P USB-to-Serial converters
Selectable 3.3V / 5V logic levels (via toggle switches)
Hardware flow control (RTS/CTS)
6-pin headers (GND, VCC, TX, RX, RTS, DTR)
Individual activity LEDs
SD Card Reader: GL823K-based MicroSD card interface
Push-pull card slot
Hot-swap capable
USB 2.0 High-Speed transfer

Power Management

Individual Port Protection: TPS2051BDBVR load switches (500mA per port)
Overcurrent protection
Thermal shutdown
Inrush current limiting
Enable control via hub IC
USB-C Power Delivery:
Downstream ports: 56kΩ CC resistors (advertises 500mA)
Upstream port: 5.1kΩ CC resistors (UFP/sink configuration)
Voltage Regulation:
AMS1117-3.3 LDO for 3.3V peripherals
Separate power domains for hub ICs (3.3V, 1.8V)

Protection Circuitry

ESD Protection: TPD4E001 TVS diode arrays on all USB ports
±8kV contact discharge protection
Clamping voltage: 17V
Protects D+, D-, CC1, CC2 lines
Port Activity LEDs: 6× green indicator LEDs (1 per external port)

🔧 Hardware

PCB Specifications

Layers: 4-layer stackup
L1: High-speed signals, components (1oz copper)
L2: Solid ground plane (1/2oz copper, 0.0994mm prepreg)
L3: Ground + power pours (1/2oz copper)
L4: Power distribution, decoupling (1oz copper)
Impedance Control:
USB differential pairs: 90Ω ±10% (0.165mm trace, 0.2mm gap)
USB-C CC lines: 50Ω single-ended
Dimensions: ~100mm × 70mm
Mounting: 4× M2.5 mounting holes

PCB 3D Renders

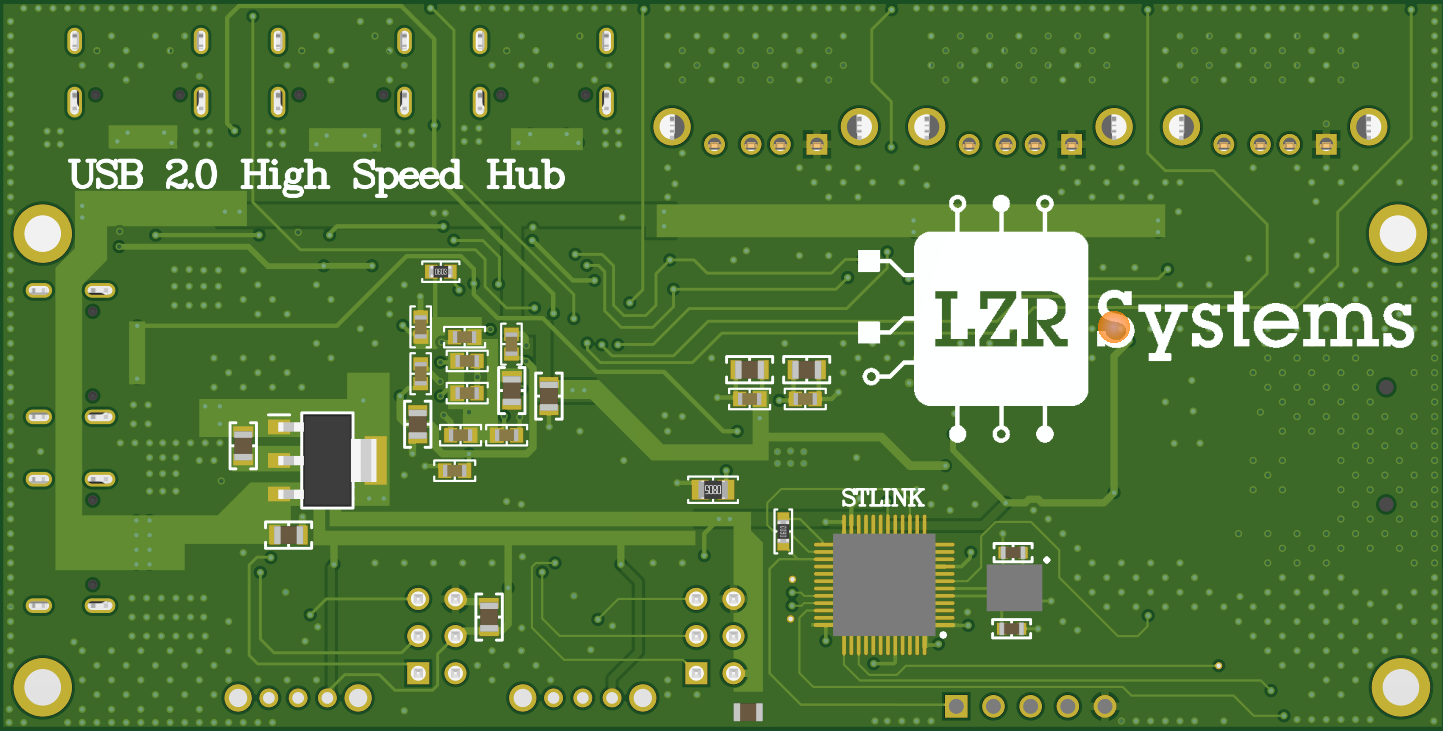

3D Board Top 3D Board Bottom

📐 Schematics

Block Diagram:

Block Diagram

Main Schematic - Hubs & Peripherals:

Main Schematic

Connectors & Load Switches:

Connectors Schematic

🔌 Port Mapping

External Ports (User-Accessible)

Port	Connector	Hub IC	Downstream #	Features
------	-----------	--------	--------------	---------------------------------
PORT 2	USB-A	FE2.1	DS2	500mA protected, activity LED
PORT 3	USB-A	FE2.1	DS3	500mA protected, activity LED
PORT 4	USB-A	FE2.1	DS4	500mA protected, activity LED
PORT 5	USB-C	FE2.1	DS5	500mA protected, activity LED
PORT 6	USB-C	FE2.1	DS6	500mA protected, activity LED
PORT 7	USB-C	FE2.1	DS7	500mA protected, activity LED

Internal Peripherals (Soldered)

Peripheral	Hub IC	Downstream #	Interface
------------	--------	--------------	--------------------------------------------
ST-Link ISP	FE1.1S	DS10	5-pin header (GND, RST, SWO, CLK, DIO)
UART Bridge 1	FE1.1S	DS10	6-pin header + 3.3V/5V switch
UART Bridge 2	FE1.1S	DS9	6-pin header + 3.3V/5V switch
SD Card Reader	FE1.1S	DS8	Push-pull MicroSD slot

⚙️ Technical Specifications

USB Hub Controllers

FE2.1 (Primary Hub) - Package: LQFP-48 - Downstream ports: 7 - Overcurrent detection: Grouped (OVCJ1, OVCJ5) - Crystal: 12MHz - Power: 3.3V (digital), 1.8V (analog), 5V (VBUS)

FE1.1S (Secondary Hub) - Package: BQFN-24 - Downstream ports: 4 - Cascade connection to FE2.1 port 1 - Crystal: 12MHz - Power: 3.3V, 5V (VBUS)

Load Switches (TPS2051BDBVR)

Input voltage: 2.7V - 5.5V
Current limit: 500mA (hardware)
Rds(on): 95mΩ typical
Features: OVCP, OTP, UVLO
Package: SOT-23-5

UART Bridges (CH343P)

Package: TQFN-16
Data rates: up to 6Mbps
Logic levels: 1.8V - 5.5V (selectable via VIO)
Pins: TX, RX, RTS, CTS, DTR, DSR, DCD, RI
Crystal: 12MHz

ST-Link Programmer (STM32F103C8T6)

Package: LQFP-48
Flash: 64KB
RAM: 20KB
Crystal: 8MHz

SD Card Reader (GL823K)

Interface: USB 2.0 High-Speed
Card support: SD, SDHC, SDXC (MicroSD format)
Hot-swap: Yes
Power: 3.3V + 5V (card power selectable)

🛠️ Usage

Basic Operation

Power Connection:
Connect 5V 3A power supply to power USB-C connector
Alternative: Power via upstream USB-C (limited to USB spec current)
Host Connection:
Connect upstream USB-C port to computer
Hub enumerates as USB 2.0 High-Speed device
All ports become available
UART Bridge Configuration:
Toggle S1/S2 switches to select 3.3V or 5V logic levels
Connect target via 6-pin headers
Bridges enumerate as CH343 serial ports
ST-Link Programming:
Connect target via 5-pin SWD header (or dedicated STLINK_ISP header)
Use STM32CubeIDE, Keil, or OpenOCD
Status LED indicates connection

UART Pinouts

PIN 1: GND
PIN 2: RTS (output from bridge)
PIN 3: 5V or 3.3V (selectable via switch)
PIN 4: TX (output from bridge)
PIN 5: 3.3V (always)
PIN 6: RX (input to bridge)

ST-Link SWD Pinout (5-pin header)

PIN 1: VCC (3.3V output to target)
PIN 2: SWCLK
PIN 3: GND
PIN 4: SWDIO
PIN 5: NRST (reset)
PIN 6: SWO (optional, for SWV trace)

Onboard Programming Header (6-pin, 1.27mm pitch)

PIN 1: VCC (3.3V)
PIN 2: SWCLK
PIN 3: GND
PIN 4: SWDIO
PIN 5: NRST
PIN 6: SWO

⚠️ Important Design Notes

USB-C CC Resistor Configuration

Downstream ports (host): 56kΩ pull-ups to VBUS
Advertises default USB power (500mA)
Upstream port (device): 5.1kΩ pull-downs to GND
Configures as UFP (sink/device role)

STM32F103 USB Pull-up

The STM32F103C8T6 requires an external 1.5kΩ pull-up resistor on D+ (PA12) to 3.3V. This is different from newer STM32 families (F4, G4, etc.) which have internal pull-ups.

In schematic: R39 = 1.5kΩ from PA12 to +3V3 ✓

Crystal Load Capacitors

All crystals use 10pF load capacitors (C0G/NP0 type): - Formula: C_load = 2 × (CL - C_stray) - C_stray ≈ 5pF (LQFP package + PCB traces) - Therefore: C_load = 2 × (10pF - 5pF) = 10pF

Critical: Verify all crystals are specified for CL = 10pF (especially the 8MHz for STM32).

Power Sequencing

5V input powers load switches and hub VBUS pins
AMS1117-3.3 generates 3.3V for logic
Hub ICs generate internal 1.8V for analog/PLL
All power rails must be stable before USB enumeration

High-Speed USB Routing

Differential pairs: 90Ω impedance, length matched ±2mm
Trace geometry: 0.165mm width, 0.2mm gap
Reference plane: Solid GND on L2 (0.0994mm away)
Via fencing around connectors for EMI suppression
TVS diodes placed <3mm from connectors

📦 Manufacturing

PCB Fabrication Specs

Layers:           4
Board thickness:  1.6mm
Copper weight:    1oz outer, 1/2oz inner
Min trace/space:  6/6 mil (0.15/0.15mm)
Min hole size:    0.3mm
Surface finish:   ENIG (recommended) or HASL
Impedance:        Controlled (90Ω diff, 50Ω SE)
Solder mask:      Green (or choice)
Silkscreen:       White both sides

Assembly Notes

Reflow profile: Standard SAC305 lead-free
Via-in-pad: Plugged/tented recommended under ICs
USB-C connectors: Mechanical holes provide strain relief
Thermal vias: Required on exposed pads (TPS2051B, CH343P, hub ICs)

BOM Summary

Main ICs: 7 (2× hub, 2× UART, 1× STM32, 1× SD, 1× LDO)
Load switches: 6× TPS2051BDBVR
TVS diodes: 8× TPD4E001RDBVR (32 protection lines total)
Crystals: 4× (3× 12MHz, 1× 8MHz)
Connectors: 7× USB-C, 3× USB-A, various headers
Passives: ~110 (resistors, capacitors, LEDs)

Design Considerations for Future Revisions

Add test points for critical signals (+5V, +3.3V, FE2_EN, OC pins)
Consider upgrading L3 copper from 1/2oz to 1oz for better power handling
Evaluate adding USB 3.0 capability (requires different hub IC)
Optional: Add USB-PD negotiation IC for higher power delivery

📚 Resources

Datasheets

Tools

PCB Design: Altium Designer
Programming: STM32CubeIDE, OpenOCD, st-link tools
Serial Terminal: PuTTY, TeraTerm, minicom

📄 License

This hardware design is released under: - Hardware: CERN Open Hardware Licence Version 2 - Permissive (CERN-OHL-P)

You are free to use, modify, and distribute this design for personal or commercial purposes. Attribution is appreciated but not required under the permissive license.

🚧 Project Status

Current Status: ✅ Design Complete, 🔄 PCB Ordered, ⏳ Awaiting Manufacturing

[x] Schematic design
[x] PCB layout
[x] Design rule check (DRC)
[x] Bill of materials
[x] Gerber generation
[ ] PCB fabrication (in progress)
[ ] Assembly
[ ] Testing & validation
[ ] Firmware development
[ ] Documentation completion
